Reliable Hotel Card Lock for New Hotels & Renovation Projects
This modern hotel card lock is designed for hospitality projects that require reliable performance, premium appearance and flexible access. Supporting TTHotel App, RFID card and mechanical key access, it provides a practical solution for new hotels, hotel renovations, resorts, boutique hotels and business hotels.
With its modern design and cost-effective positioning, it is particularly suitable for hotel owners, procurement teams, distributors and wholesalers serving hospitality markets in Southeast Asia，Amerian and Africa Countries.
Main feature of hotel lock
Automatic lock
After door is opened and handle is released, the lock will lock itself automatically. If reading card but not open the door, the lock will lock itself automatically in 6 seconds.
Door-Closing Remind
If you entered the room but forget to close the door or if the door is not closed completely, there will be “Di-Di” sound from the lock to remind you close it.
Low Battery Alert
If low battery, there will be beeps to remind you to change batteries, and you can open the door for about 100 times before the batteries are dead.
Emergency Unlock
If battery exhausted or PCB defective, you can use mechanical key to open the door for emergency.
Door-Opening Record
The lock will save the latest 255 pieces of door-opening record. You can know who/when/how opened the door. This record could be of help if theft or other security problem happens.
Do-Not-Disturb Alert
If guest lock the door inside with deadbolt, blue LED light on the lock panel will flash to alert that the guest need privacy time, and waiter can not open the door.
Real-Time Clock
Clock function of the lock can effectively control the validity of guest card to prevent guest default on room rate. The key card get invalidated after check-in time expires.
Hotel Lock Technical Specifications
| Material | Aluminum Alloy |
| Panel Size | 3oox75mm |

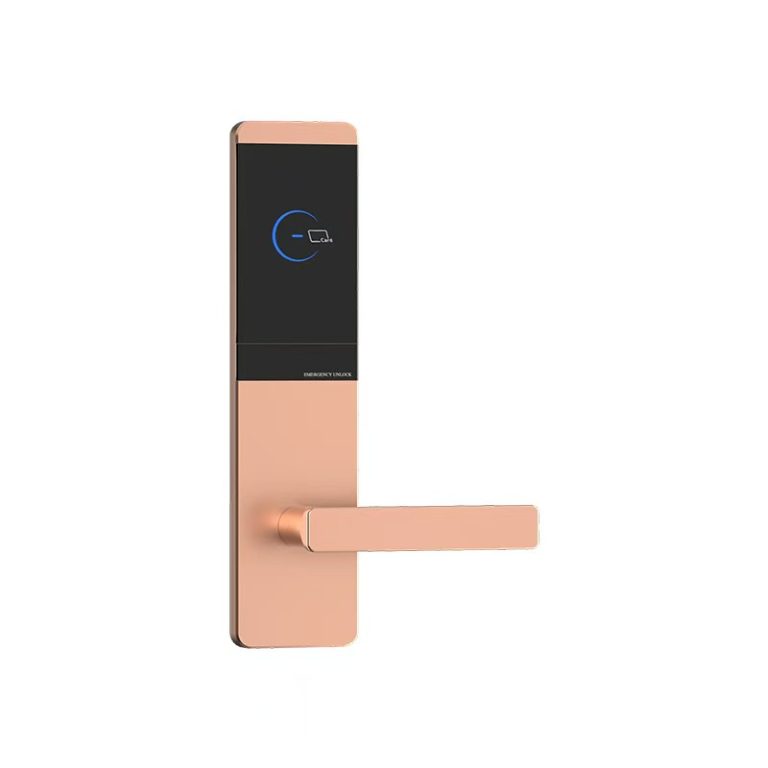

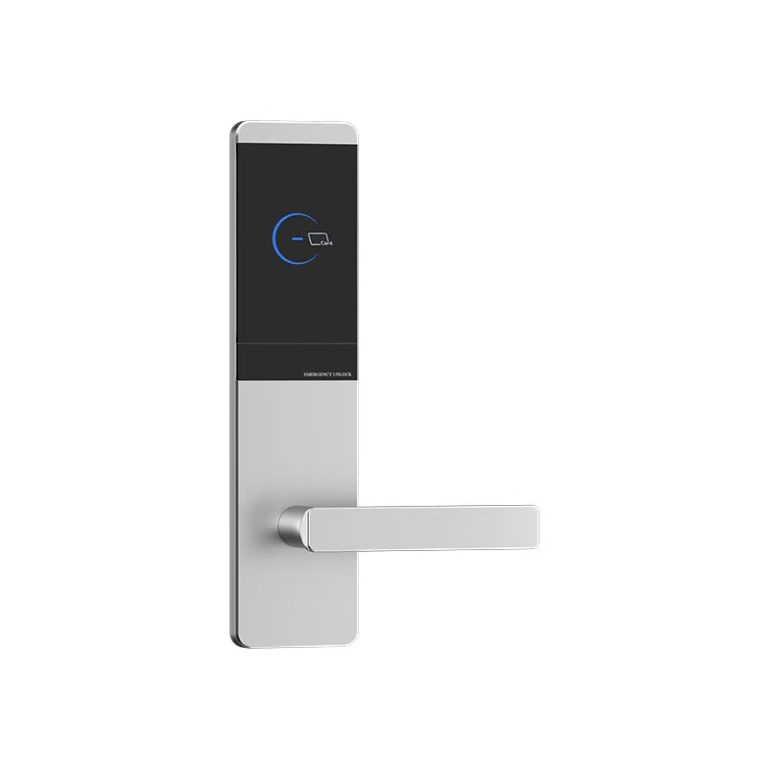

| Available Color | Golden, Silver, Black |
| Mortise Options | ANSI Standard M60#/ M70# mortise |
| Power Supply | 4pcs AA alkaline batteries |
| Door Thickness | 35~55mm |
| Applicable For | hotels, luxury villas, luxury apartments, and high-grade office buildings and other places |
| Unlock Modes | RFID card, Mechanical key, Bluetooth App (optional) |
| Supported App | TThotel App |
| Working Temperature | -20℃~45℃ |
| Working Humidity | 20%~95%RH |
| Static Current | 25μA |
| Dynamic Current | <150mA |
| Battery Life | About 15000 times door opening |
| Low Power Alarm | There is di-di-di beep when power is below 4.8V |

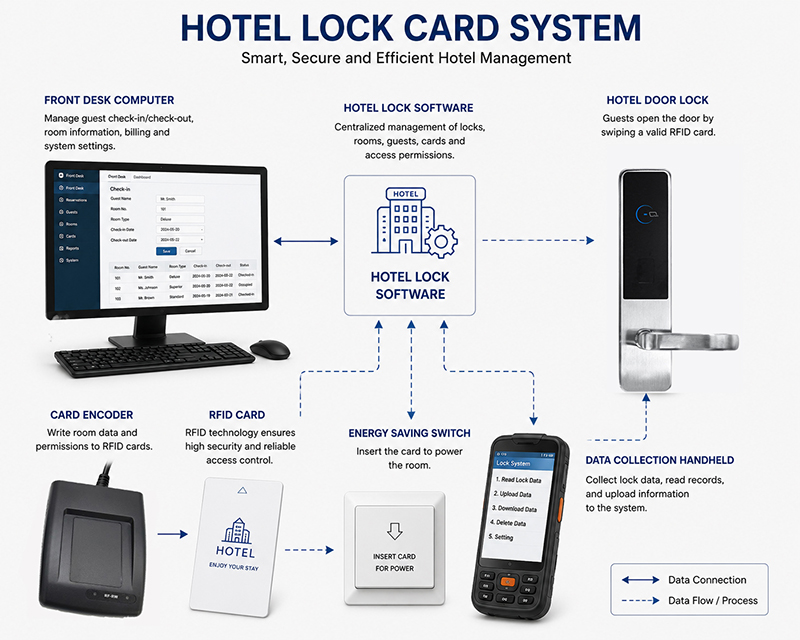

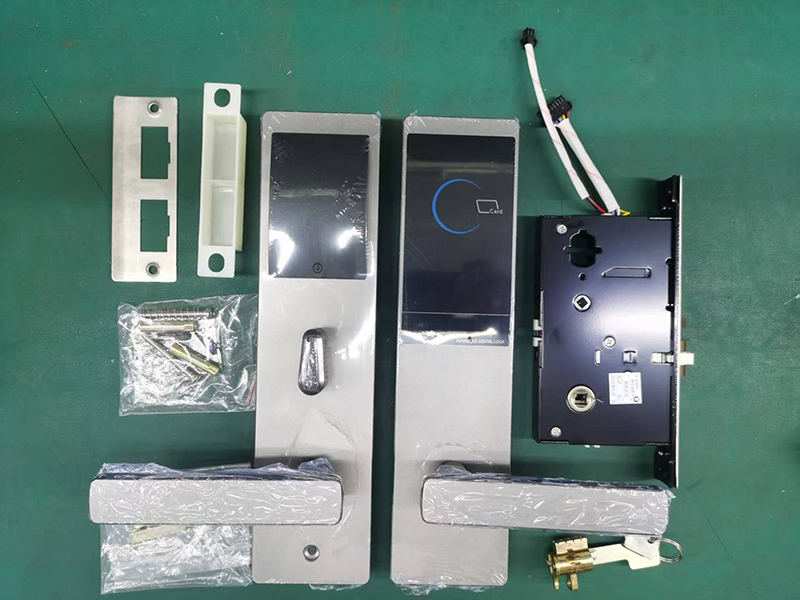

Hotel Card Locking System Including:
- Hotel lock (qty = hotel room, right/left, door thickness)
- USB Card Encoder (1/2 piece) — to issue card
- Lock Management Handheld or data card (1 piece/hotel, optional) — Collect data, initialize lock
- Keycard ( 3-5pcs/room)
- Hotel Management Software (1 piece) — Powerful and User-friendly
- Power Saver Switch (qty = hotel room, 220/110V, 40/60A) — insert card to get power
- Hotel System Peripheral e.g. Electronic Doorplate, Digital/keycard safe box, Sauna Lock, Wall door reader, Elevator controller…
We offer different hotel lock management system for customers’ choice.
1. Prousb V9 card lock management system, most of the old customers are using this system, which is a classic hotel card locks system. some cutomers meet the software problem and register code problem of this syem, can contact us.
2. Elock intelligent lock management system, many new customers we are recommending this system
3. TThotel lock managment system, the customer want open by by bluetooth app can choose this

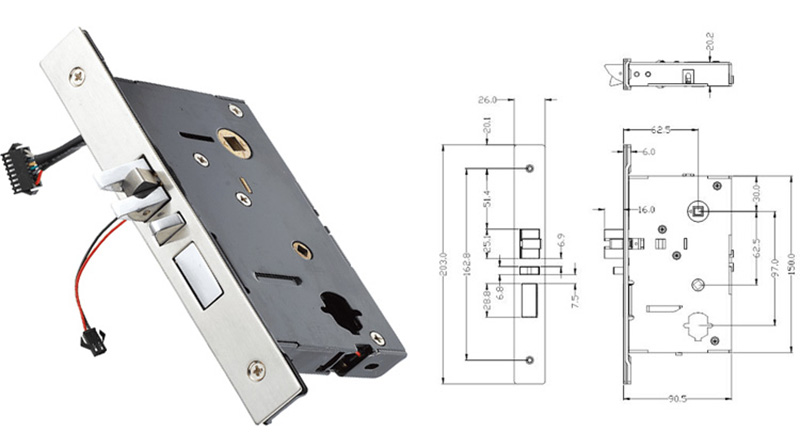

ANSI Standard 60mm mortise

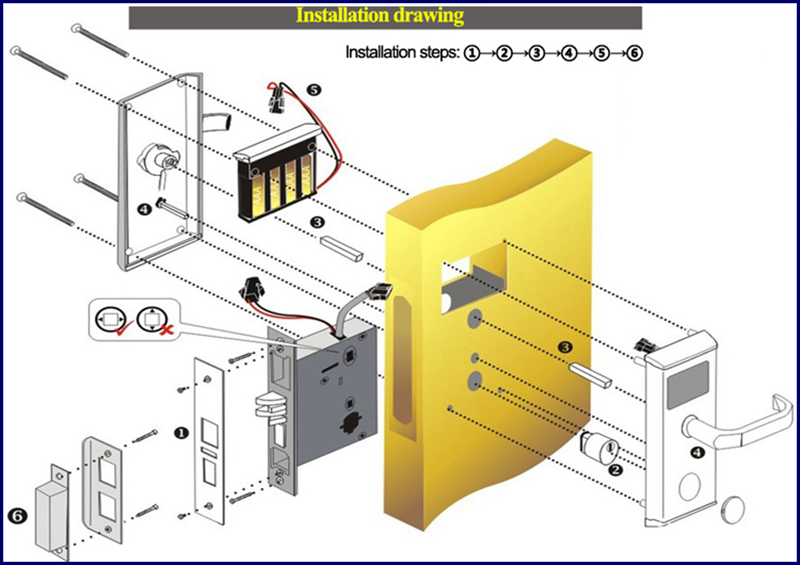

Installation Drawing
Applications-Where Can This RFID Hotel Door Lock Be Used?
Hotels
Modern room access for new and existing hotels.
Resorts
A stylish locking solution for hospitality environments.
Boutique Hotels
Premium appearance for design-focused properties.
Business Hotels
Practical access combined with modern aesthetics.
Hotel Renovation Projects
An effective way to refresh traditional hotel room doors.
Hotel Apartment Projects
Flexible access for hospitality and serviced accommodation.
Why Choose This Hotel Lock？
Reliable. Modern. Hotel-Ready.
- Stable & Durable
Built for reliable, long-term performance in daily hotel operations. - Modern & Premium Design
A sleek, elegant look that adds a high-end touch to hotel interiors. - Flexible Access
Supports TTHotel App, RFID Card, and Mechanical Key for convenient and flexible access. - Ideal for New Hotels & Renovation
A practical upgrade solution for both new hotel projects and hotel renovations. - Excellent Value for Emerging Markets
A cost-effective choice for hotel projects across Southeast Asia and Africa, balancing modern design, reliable quality, and project budgets.
Why Partner with Us?
One-stop Hotel Lock Management Supplier： We provide a fully integrated system—including locks, RFID cards, encoders, software, energy switches, and doorplates. 100% compatibility, zero hassle.
Factory-Direct Advantages：Get direct-from-factory pricing, strict quality control, and flexible OEM/ODM customization to scale your local brand.
System-Level Support：Unlike trading companies, our engineering team provides complete hardware guidance and software setup support from day one.
