Modern Design. Easy Replacement. Lower Renovation Costs.
Upgrade your hotel doors without unnecessary drilling, door modifications or expensive renovation work.

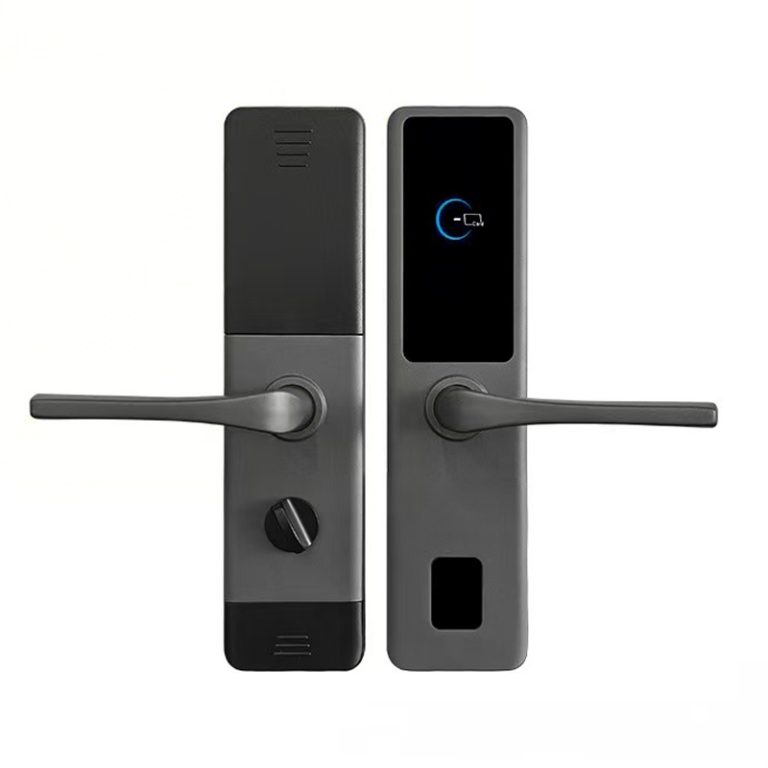

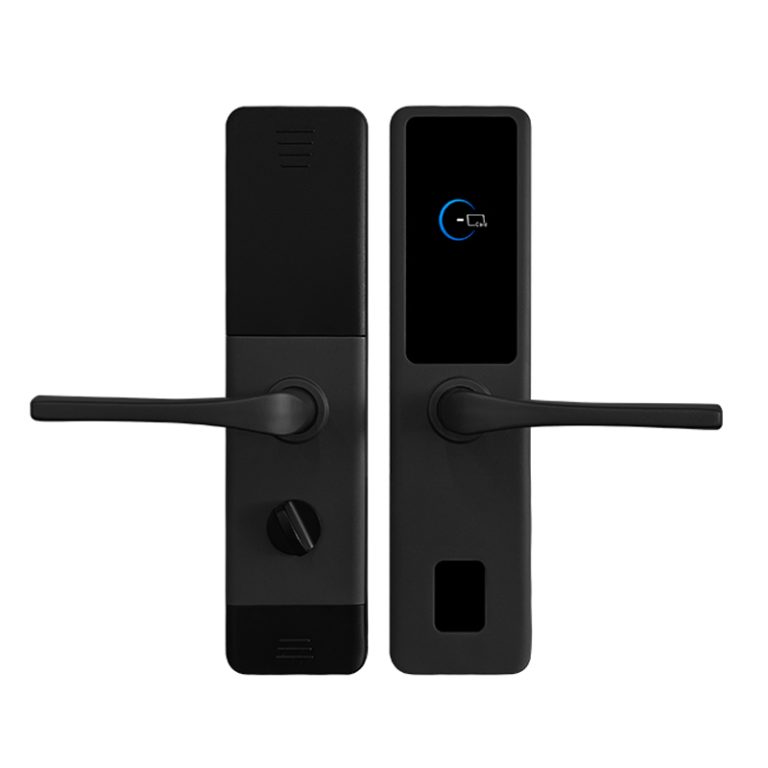

This RFID hotel door lock is designed for hotel renovation projects, replacement of existing hotel locks and new hotel installations. Its modern appearance provides a clean and premium look, while the replacement-friendly design can help reduce installation time and renovation costs when compatible with existing door preparations.
With RFID card access and a reliable hotel locking system, it is an ideal solution for hotels looking to modernize their guest rooms while keeping the original door structure and appearance.
Main feature of hotel lock
Automatic lock
After door is opened and handle is released, the lock will lock itself automatically. If reading card but not open the door, the lock will lock itself automatically in 6 seconds.
Door-Closing Remind
If you entered the room but forget to close the door or if the door is not closed completely, there will be “Di-Di” sound from the lock to remind you close it.
Low Battery Alert
If low battery, there will be beeps to remind you to change batteries, and you can open the door for about 100 times before the batteries are dead.
Emergency Unlock
If battery exhausted or PCB defective, you can use mechanical key to open the door for emergency.
Door-Opening Record
The lock will save the latest 255 pieces of door-opening record. You can know who/when/how opened the door. This record could be of help if theft or other security problem happens.
Do-Not-Disturb Alert
If guest lock the door inside with deadbolt, blue LED light on the lock panel will flash to alert that the guest need privacy time, and waiter can not open the door.
Real-Time Clock
Clock function of the lock can effectively control the validity of guest card to prevent guest default on room rate. The key card get invalidated after check-in time expires.
Hotel Lock Technical Specifications
| Material | Aluminum Alloy |
| Panel Size | 311x76mm |
| Available Color | Grey, Black |
| Mortise Options | ANSI Standard M60#/ M70# mortise |
| Power Supply | 4pcs AA alkaline batteries |
| Door Thickness | 35~55mm |
| Applicable For | hotels, luxury villas, luxury apartments, and high-grade office buildings and other places |
| Unlock Modes | RFID card, Mechanical key, Bluetooth App (optional) |
| Supported App | TThotel App |
| Working Temperature | -20℃~45℃ |
| Working Humidity | 20%~95%RH |
| Static Current | 25μA |
| Dynamic Current | <150mA |
| Battery Life | About 15000 times door opening |
| Low Power Alarm | There is di-di-di beep when power is below 4.8V |
Hotel Card Lock System Including
- Hotel lock (qty = hotel room, right/left, door thickness)
- USB Card Encoder (1/2 piece) — to issue card
- Lock Management Handheld or data card (1 piece/hotel, optional) — Collect data, initialize lock
- Keycard ( 3-5pcs/room)
- Hotel Management Software (1 piece) — Powerful and User-friendly
- Power Saver Switch (qty = hotel room, 220/110V, 40/60A) — insert card to get power
- Hotel System Peripheral e.g. Electronic Doorplate, Digital/keycard safe box, Sauna Lock, Wall door reader, Elevator controller…
ANSI Standard 60mm mortise
Installation Drawing
Hotel Lock Applications
This RFID hotel lock is suitable for a wide range of hospitality and renovation projects.
Hotels
Upgrade outdated guest-room locks with a modern RFID access solution.
Boutique Hotels
The contemporary design complements stylish and modern hotel interiors.
Business Hotels
Provide reliable and convenient room access for business travelers.
Resorts
Suitable for guest rooms and hospitality properties requiring professional access management.
Serviced Apartments
A practical access solution for hospitality and extended-stay properties.
Hotel Renovation Projects
Ideal for replacing older hotel locks while minimizing unnecessary door modifications.
Hotel Lock Replacement
A suitable option for property owners and contractors looking to replace aging or outdated hotel door locks.
Why Choose This Hotel Lock for Renovation Projects?

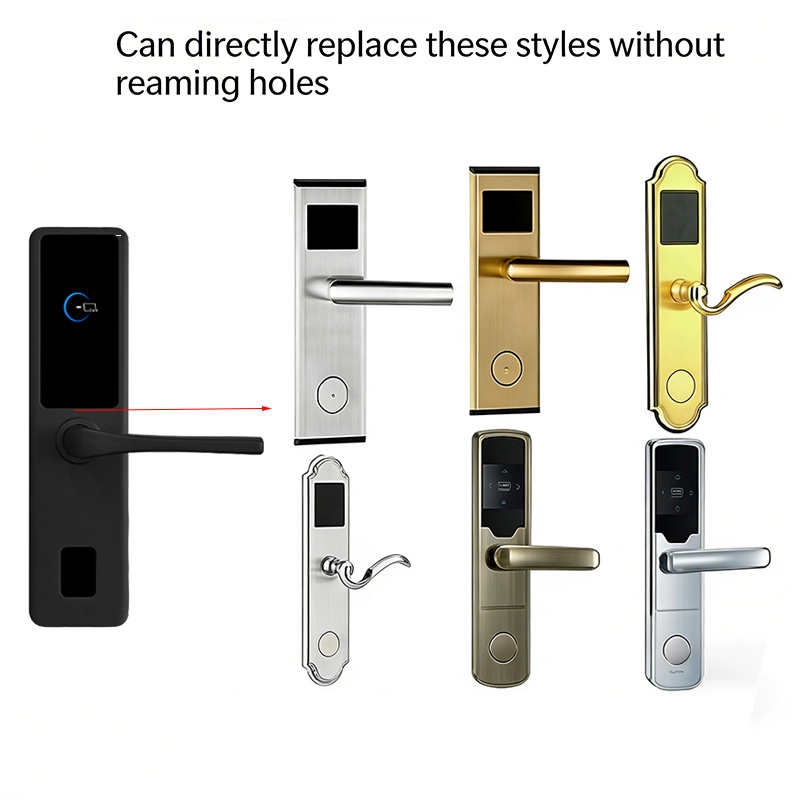

1. Replacement-Friendly Design
Designed with hotel renovation projects in mind, this lock can be a practical choice when replacing older hotel locks with minimal door modification.
2. Reduce Renovation Costs
Using compatible existing door preparations can reduce drilling, labor and installation work, helping contractors control project costs.
3. Modern Appearance
The slim, contemporary design gives traditional hotel doors a more modern and professional appearance.
4. RFID Card Access
RFID technology provides convenient contactless access for hotel guests and supports professional hotel room management.
5. Ideal for Large-Scale Projects
A replacement-oriented design is particularly valuable for hotels with many guest rooms, where installation efficiency can directly affect the total project budget.
A Smart Choice for New Hotels & Renovation Projects
Whether you are equipping a new hotel or upgrading an existing property, this RFID hotel lock provides a reliable and stylish solution for modern hospitality projects.
Featuring a high-quality construction and a contemporary design, it combines durability, convenient RFID card access and a refined appearance that complements a wide range of hotel interiors.
For hotel renovation projects, it can be used to upgrade older hotel locks and, where existing door preparations are compatible, help reduce unnecessary door modification and installation work. For new hotel projects, its modern design and reliable performance make it an excellent choice for guest-room applications.
A reliable hotel lock solution combining quality, modern design and installation efficiency for both new construction and renovation projects.
