Durable RFID Access Control with a Modern Split Design for Hotels, Resorts and Hospitality Projects

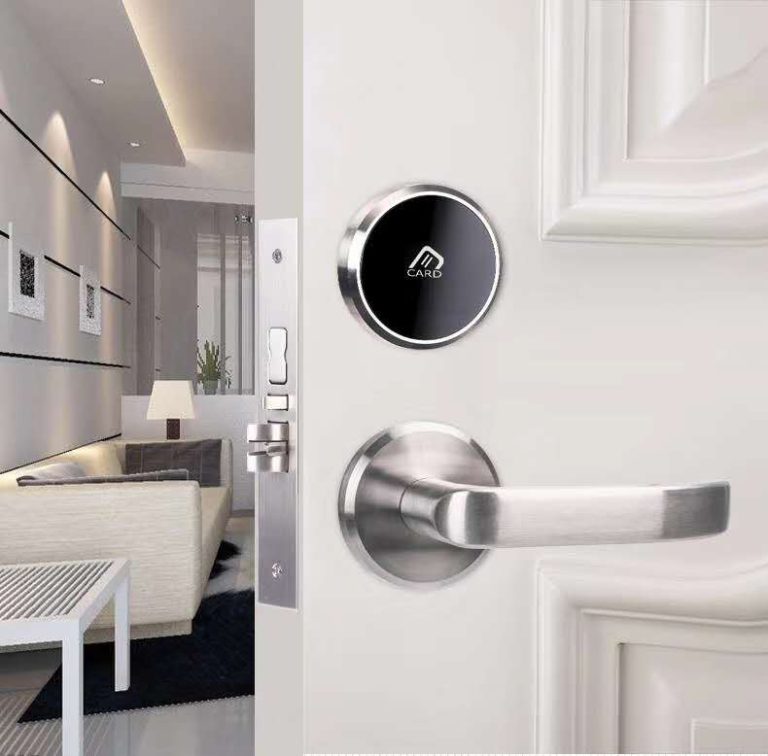

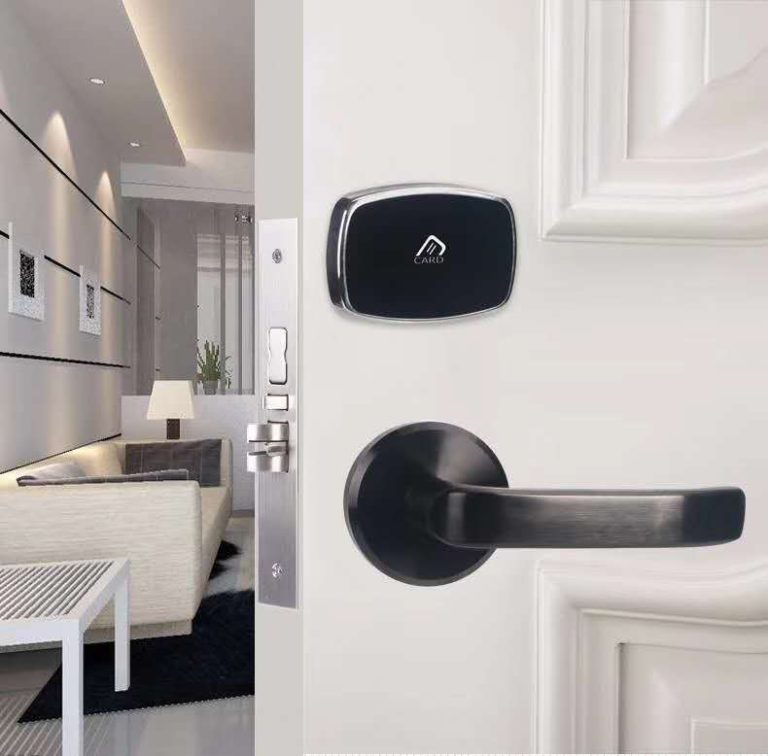

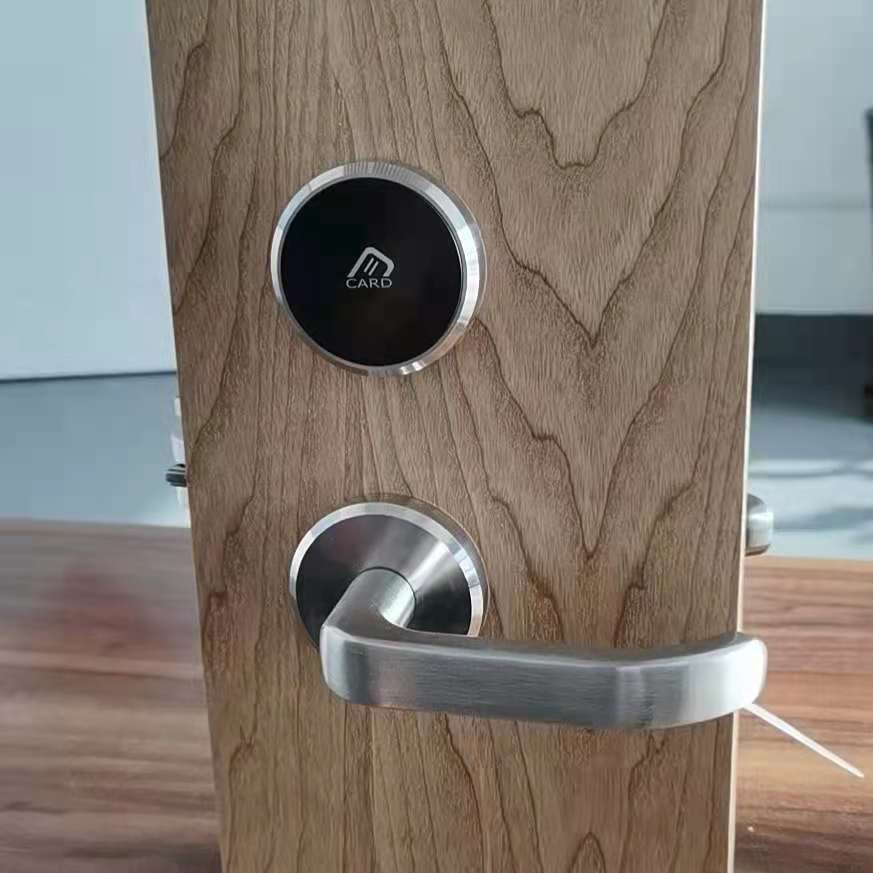

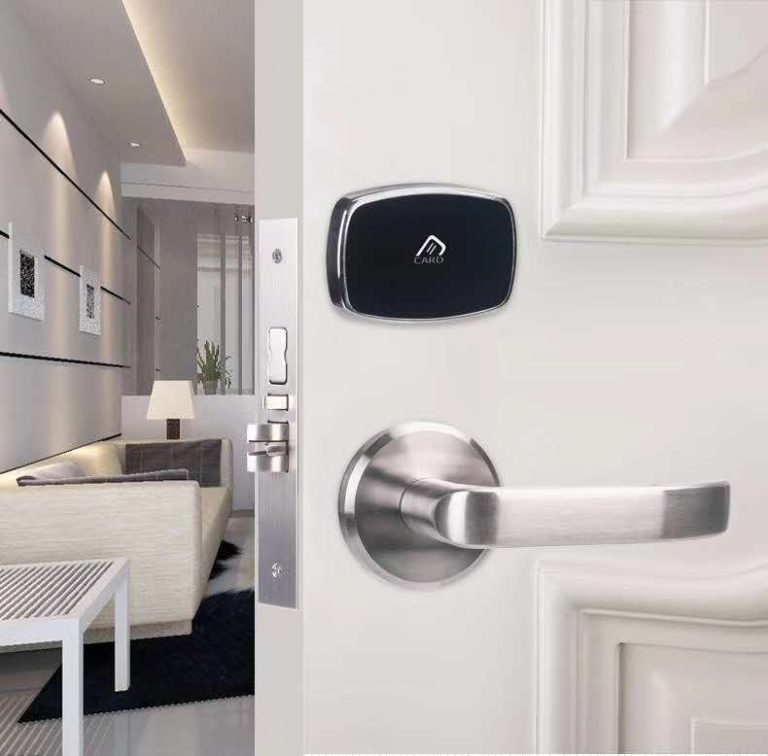

The 304 Stainless Steel Split RFID Hotel Door Lock combines a clean, modern design with durable stainless steel construction and reliable RFID card access. Its split-style structure gives hotel doors a more minimalist appearance while providing a practical access control solution for guest rooms and hospitality projects.
Designed for hotels, resorts, boutique hotels, serviced apartments and hotel renovation projects, this RFID hotel lock is an ideal choice for hotel owners, distributors, contractors and hospitality hardware wholesalers looking for a reliable and professional door lock solution.
Key Feature:
Automatic lock
After door is opened and handle is released, the lock will lock itself automatically. If reading card but not open the door, the lock will lock itself automatically in 6 seconds.
Door-Closing Remind
If you entered the room but forget to close the door or if the door is not closed completely, there will be “Di-Di” sound from the lock to remind you close it.
Low Battery Alert
If low battery, there will be beeps to remind you to change batteries, and you can open the door for about 100 times before the batteries are dead.
Emergency Unlock
If battery exhausted or PCB defective, you can use mechanical key to open the door for emergency.
Door-Opening Record
The lock will save the latest 255 pieces of door-opening record. You can know who/when/how opened the door. This record could be of help if theft or other security problem happens.
Do-Not-Disturb Alert
If guest lock the door inside with deadbolt, blue LED light on the lock panel will flash to alert that the guest need privacy time, and waiter can not open the door.
Real-Time Clock
Clock function of the lock can effectively control the validity of guest card to prevent guest default on room rate. The key card get invalidated after check-in time expires.
Hotel Lock Technical Specifications
| Material | 304 stainless steel |
| Panel Size | 220x64mm |
| Available Color | Silver, black |
| Mortise Options | ANSI Standard M60#/ M70# mortise |
| Power Supply | 4pcs AA alkaline batteries |
| Door Thickness | 35~55mm |
| Applicable For | hotels, luxury villas, luxury apartments, and high-grade office buildings and other places |
| Unlock Modes | RFID card, Mechanical key, Bluetooth App (optional) |
| Supported App | TThotel App |
| Working Temperature | -20℃~45℃ |
| Working Humidity | 20%~95%RH |
| Static Current | 25μA |
| Dynamic Current | <150mA |
| Battery Life | About 15000 times door opening |
| Low Power Alarm | There is di-di-di beep when power is below 4.8V |
Hotel Card Lock System Including
- Hotel lock (qty = hotel room, right/left, door thickness)
- USB Card Encoder (1/2 piece) — to issue card
- Lock Management Handheld or data card (1 piece/hotel, optional) — Collect data, initialize lock
- Keycard ( 3-5pcs/room)
- Hotel Management Software (1 piece) — Powerful and User-friendly
- Power Saver Switch (qty = hotel room, 220/110V, 40/60A) — insert card to get power
- Hotel System Peripheral e.g. Electronic Doorplate, Digital/keycard safe box, Sauna Lock, Wall door reader, Elevator controller…
We offer different hotel lock management system for customers’ choice.
1. Prousb V9 card lock management system, most of the old customers are using this system, which is a classic hotel card locks system. some cutomers meet the software problem and register code problem of this syem, can contact us.
2. Elock intelligent lock management system, many new customers we are recommending this system
3. TThotel lock managment system, the customer want open by by bluetooth app can choose this
ANSI Standard 60mm mortise
Applications:
Hotels
A reliable RFID hotel door lock solution for guest rooms in new and existing hotels.
Boutique Hotels
The compact split design complements modern and stylish boutique hotel interiors.
Resorts
Suitable for guest rooms and accommodation facilities where convenient electronic access is required.
Business Hotels
Provides a professional access solution for frequently occupied guest rooms.
Serviced Apartments
Suitable for serviced apartments and extended-stay accommodation requiring controlled guest access.
Hotel Renovation Projects
The split design can be considered for hotel refurbishment projects where existing mechanical locks need to be upgraded to RFID access.
Why Choose This Lock?

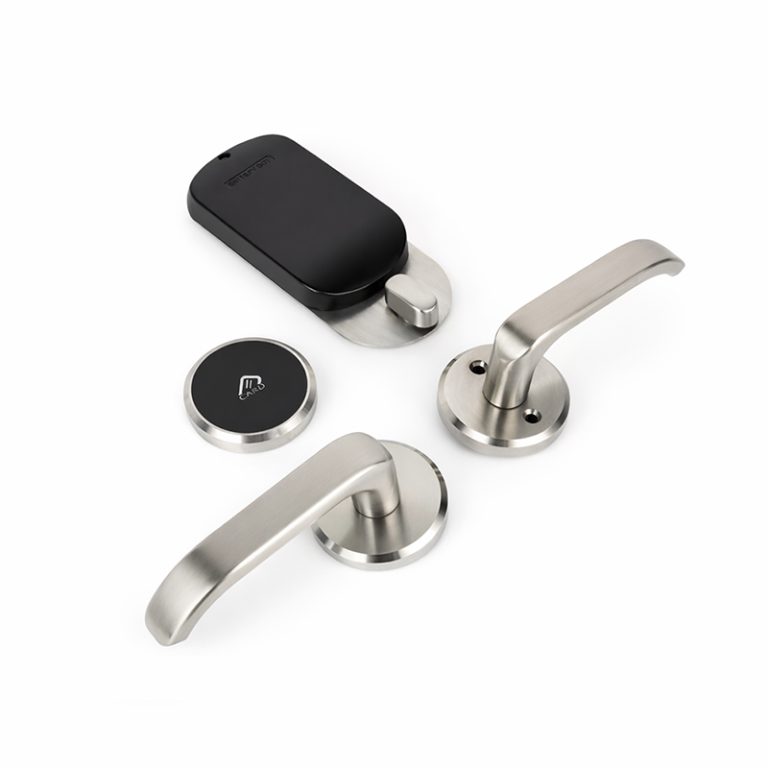

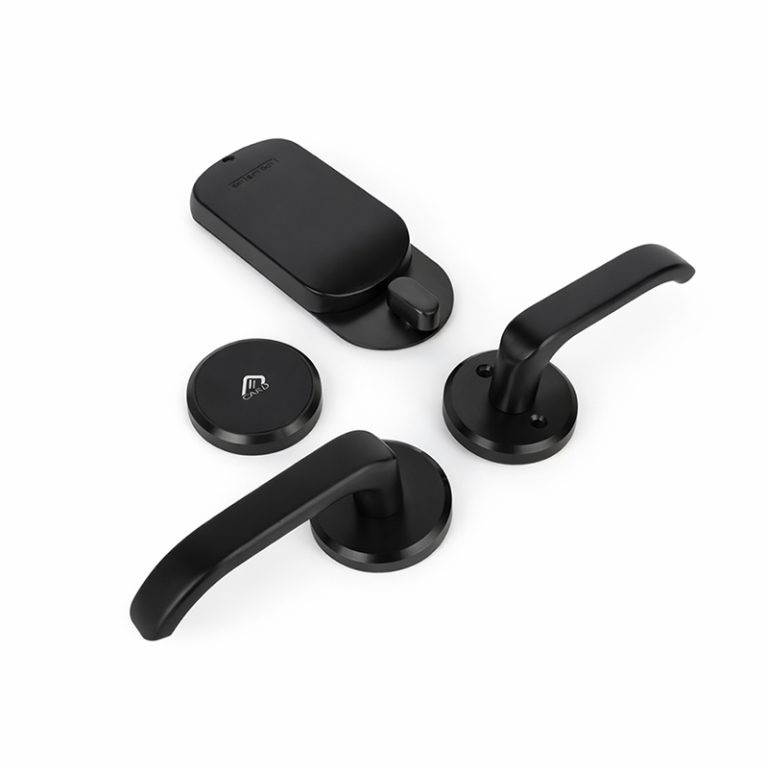

1. Small Split Panels Preserve Door Aesthetics
The split design features compact electronic panels, minimizing the visual impact on the door surface. Unlike large full-panel locks, it helps preserve the original door style and decorative appearance.
2. Ideal for North American Hotel Renovations
Designed with retrofit projects in mind, the split configuration is particularly suitable for hotels in North America looking to upgrade existing mechanical locks to electronic RFID access without extensive door modifications.
3. Easy Replacement with Existing Door Preparation
The compact split structure can help reduce the need for major changes to existing door holes and door surfaces. When the existing door preparation and lock body are compatible, the electronic lock can be installed as a replacement with less modification work. For projects using common North American/ANSI-style lock preparations, compatibility should be confirmed based on the existing lock body and door dimensions.
4. Lower Retrofit Cost
Because the split design can minimize door modifications, it can help reduce installation labor and renovation costs compared with solutions that require extensive changes to existing doors.
5. Lower Maintenance Cost
The split structure also offers a practical advantage during maintenance. Electronic components and handle components are separated, making inspection, servicing and replacement more manageable and potentially reducing maintenance costs compared with integrated full-panel designs.
6. Premium 304 Stainless Steel
Constructed from 304 stainless steel, the lock combines durability with a premium brushed finish. The solid metal construction gives hotel doors a high-end, refined look and feel.
7. Modern Design with Practical RFID Access
The combination of a minimalist split design and RFID card access provides both an elegant appearance and convenient electronic room access, making it suitable for modern hotel environments.
Why Partner with Us?
One-stop Hotel Lock Management Supplier： We provide a fully integrated system—including locks, RFID cards, encoders, software, energy switches, and doorplates. 100% compatibility, zero hassle.
Factory-Direct Advantages：Get direct-from-factory pricing, strict quality control, and flexible OEM/ODM customization to scale your local brand.
System-Level Support：Unlike trading companies, our engineering team provides complete hardware guidance and software setup support from day one.
