Hotel Lock Technical Specifications
| Material | 304 Stainless steel |
| Panel Size | 242 x 77mm |

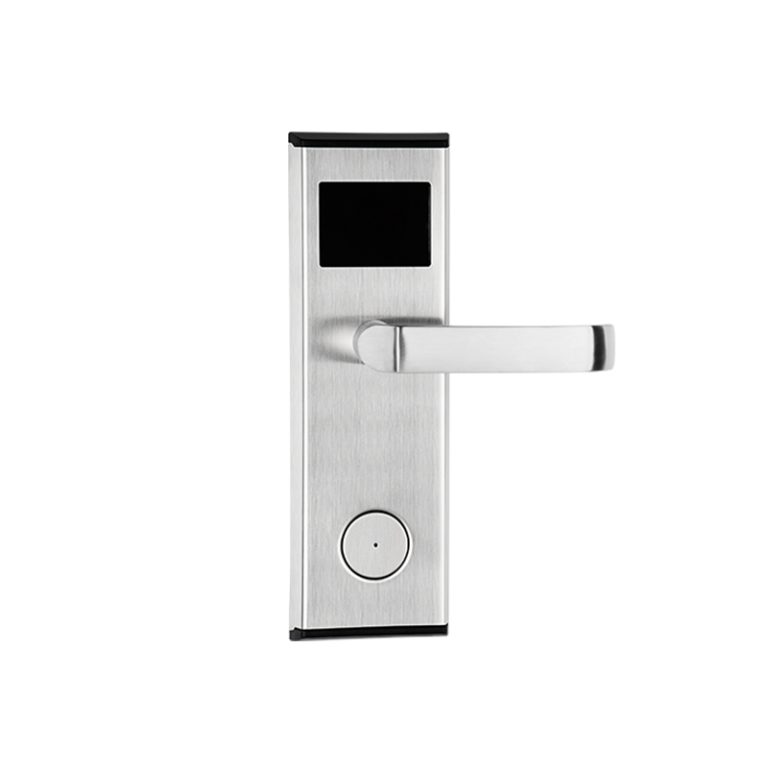

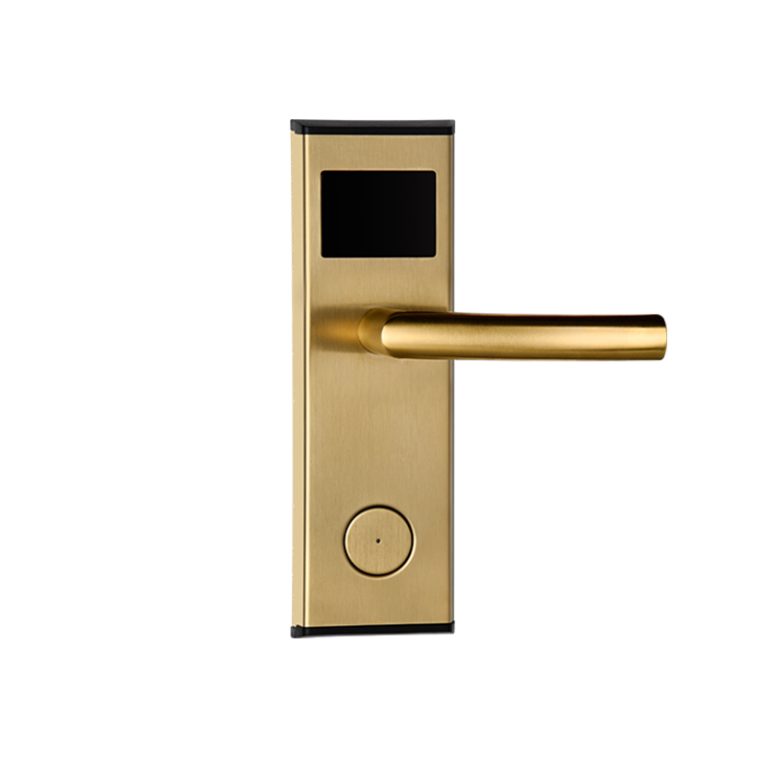

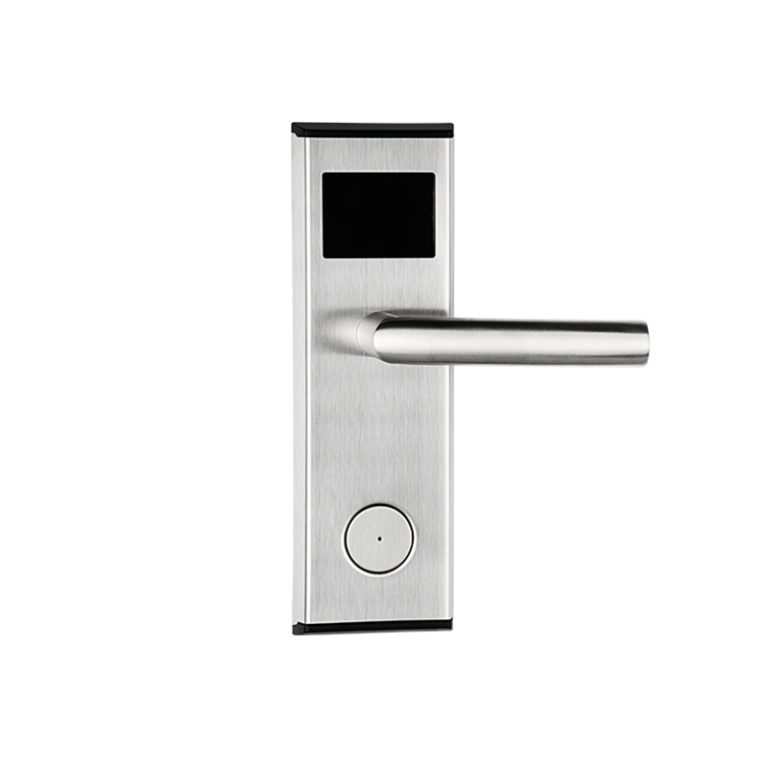

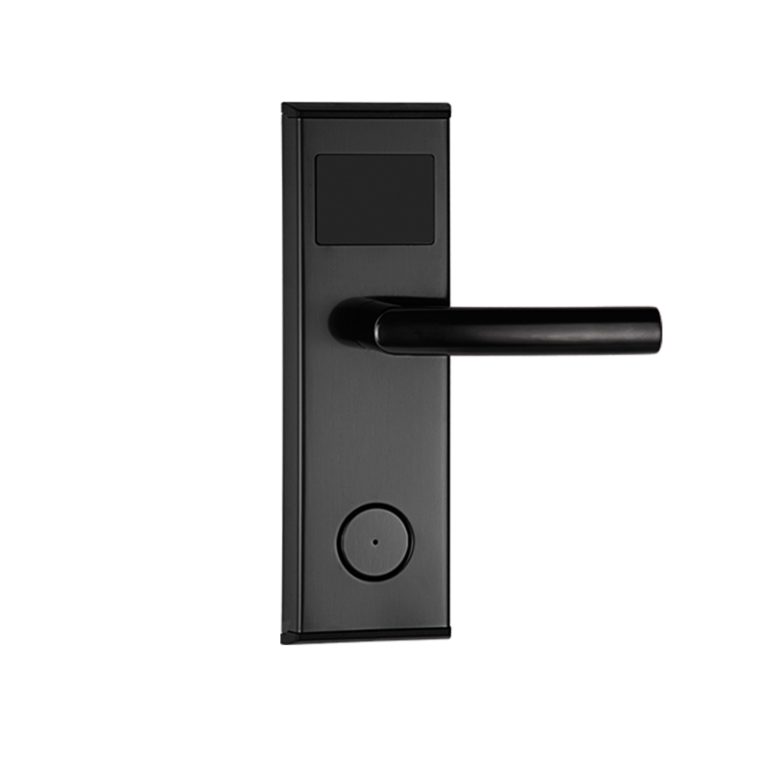

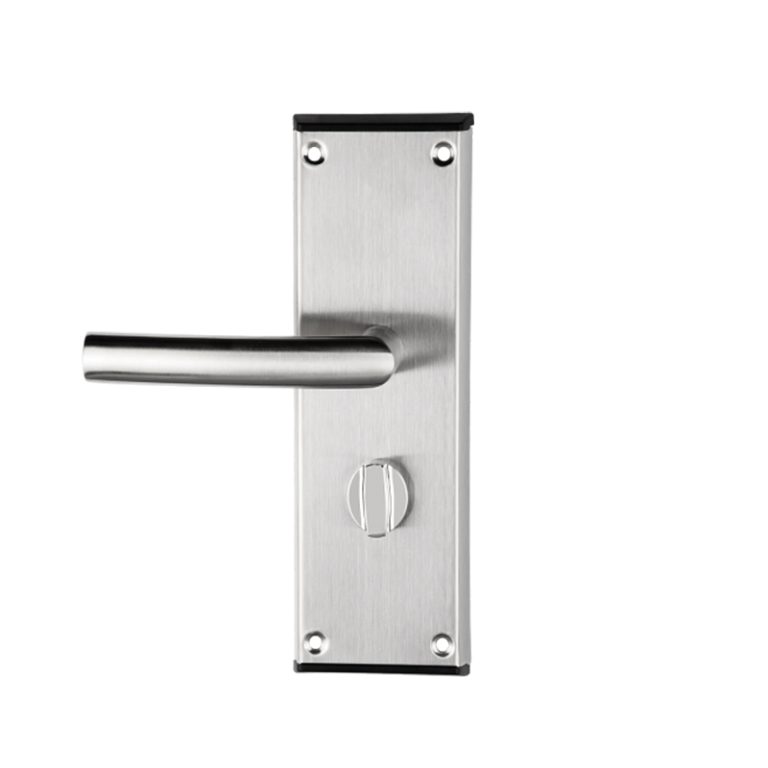

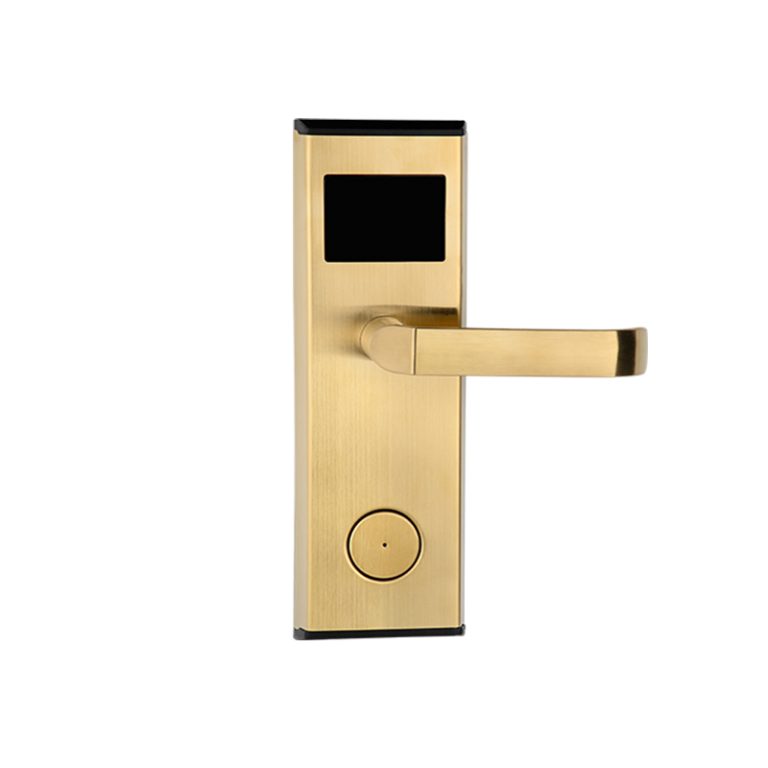

| Available Color | Silver, Golden, Black |
| Mortise Options | ANSI Standard M60#/ M70# mortise |
| Power Supply | 4pcs AA alkaline batteries |
| Door Thickness | 35~55mm |
| Applicable For | hotels, luxury villas, luxury apartments, and high-grade office buildings and other places |
| Unlock Modes | RFID card, Mechanical key, Bluetooth App (optional) |
| Supported App | TThotel App |
| Working Temperature | -20℃~45℃ |
| Working Humidity | 20%~95%RH |
| Static Current | 25μA |
| Dynamic Current | <150mA |
| Battery Life | About 15000 times door opening |
| Low Power Alarm | There is di-di-di beep when power is below 4.8V |

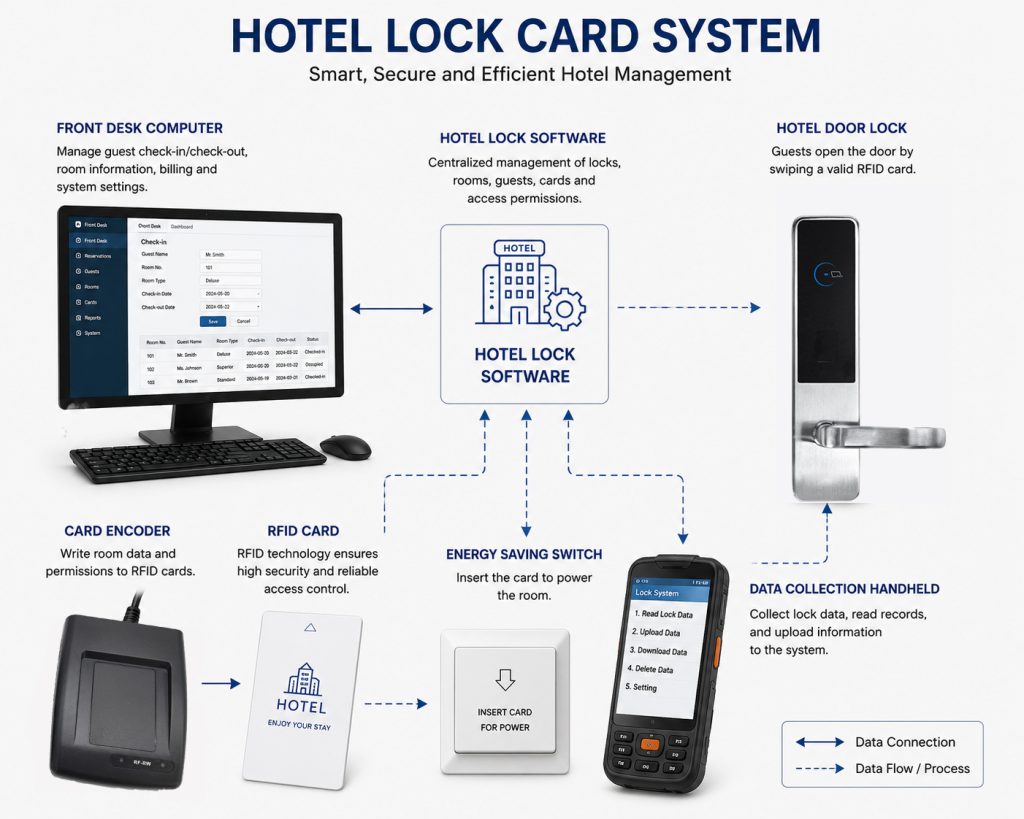

Hotel Card Lock System

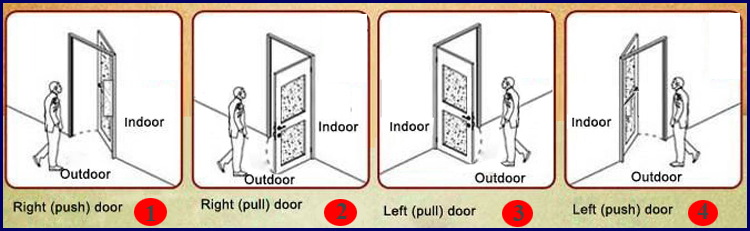

- Hotel lock (qty = hotel room, right/left, door thickness)
- USB Card Encoder (1/2 piece) — to issue card
- Lock Management Handheld or data card (1 piece/hotel, optional) — Collect data, initialize lock
- Keycard ( 3-5pcs/room)
- Hotel Management Software (1 piece) — Powerful and User-friendly
- Power Saver Switch (qty = hotel room, 220/110V, 40/60A) — insert card to get power
- Hotel System Peripheral e.g. Electronic Doorplate, Digital/keycard safe box, Sauna Lock, Wall door reader, Elevator controller…
We offer different hotel lock management system for customers’ choice.

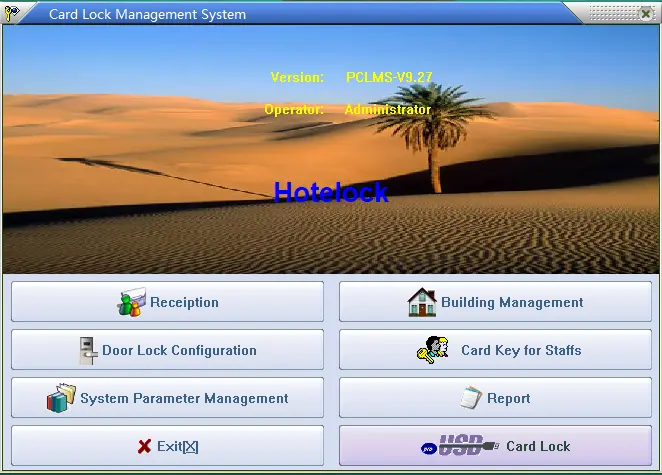

1. Prousb V9 card lock management system, most of the old customers are using this system, which is a classic hotel card locks system. some cutomers meet the software problem and register code problem of this syem, can contact us.
2. Elock intelligent lock management system, many new customers we are recommending this system
3. TThotel lock managment system, the customer want open by by bluetooth app can choose this

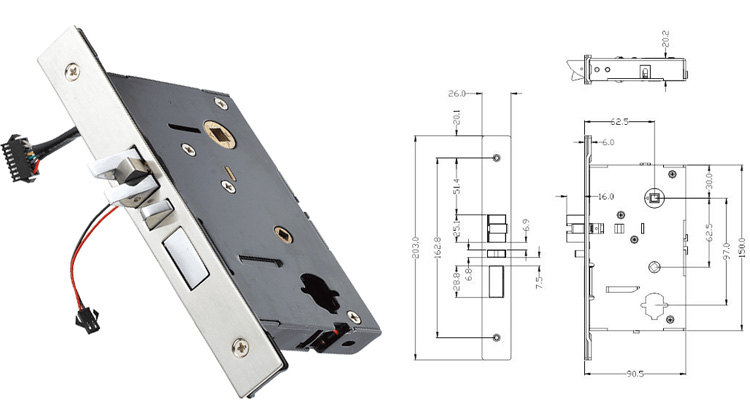

ANSI Standard 60mm mortise
