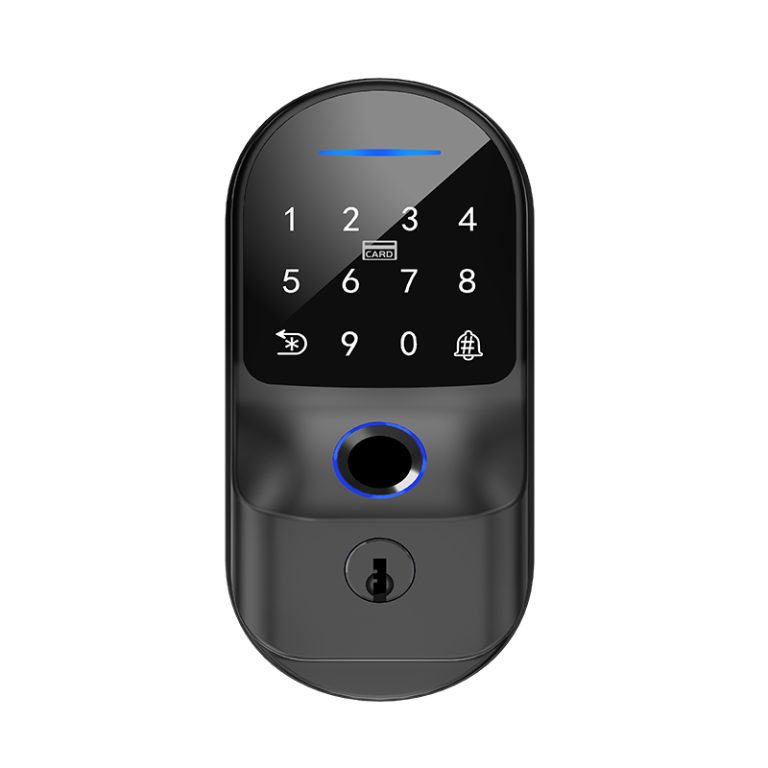

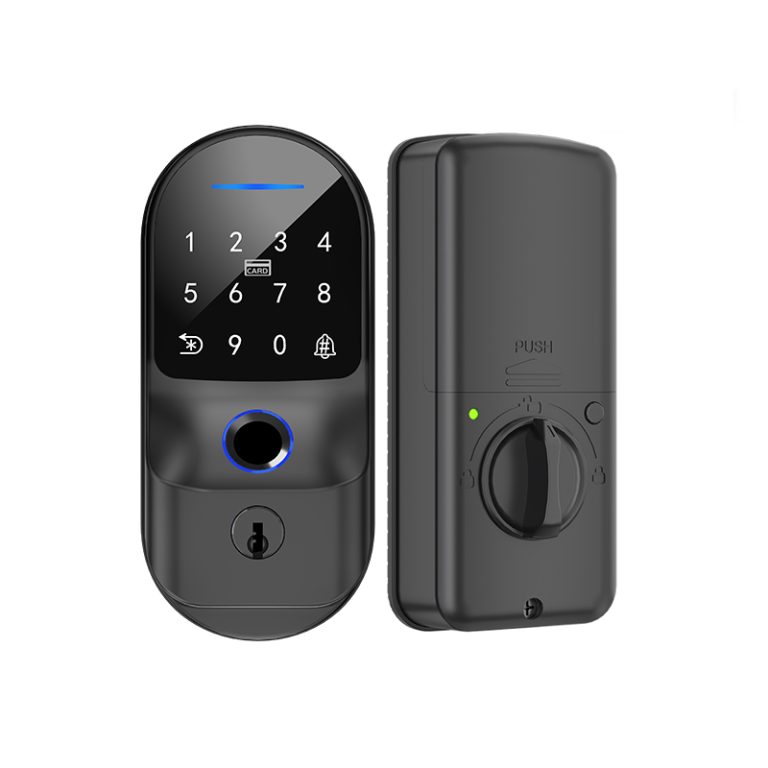

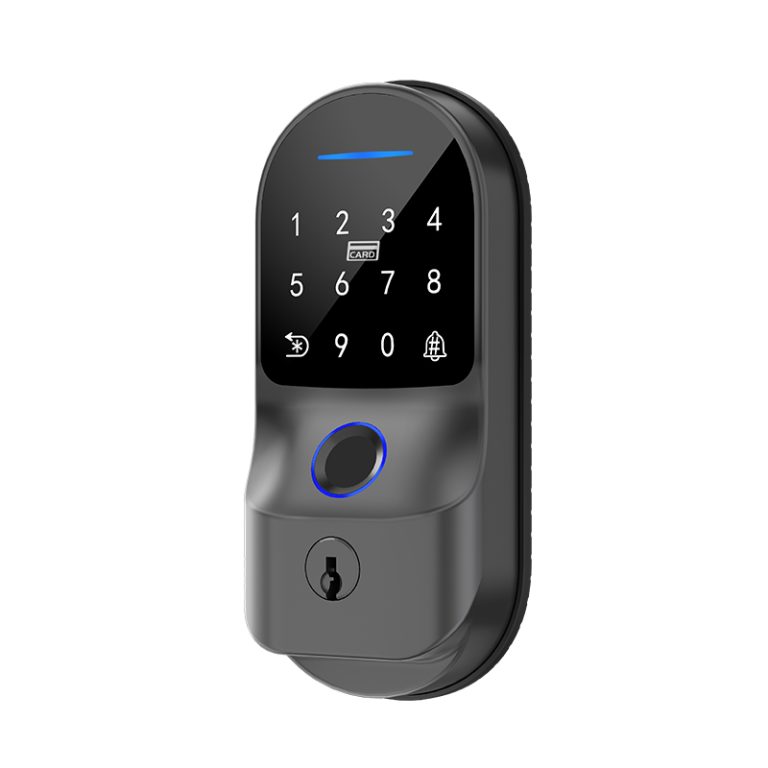

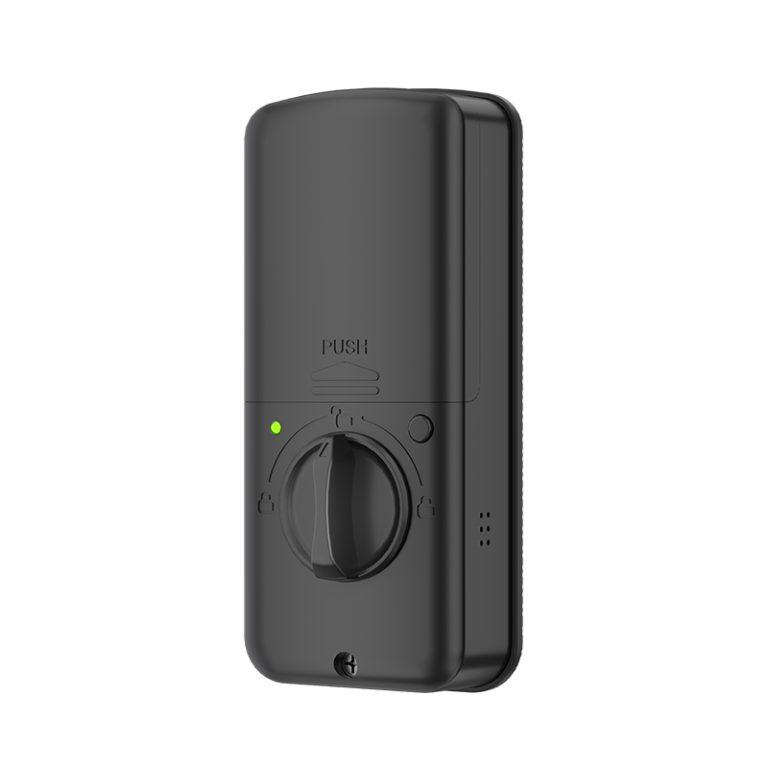

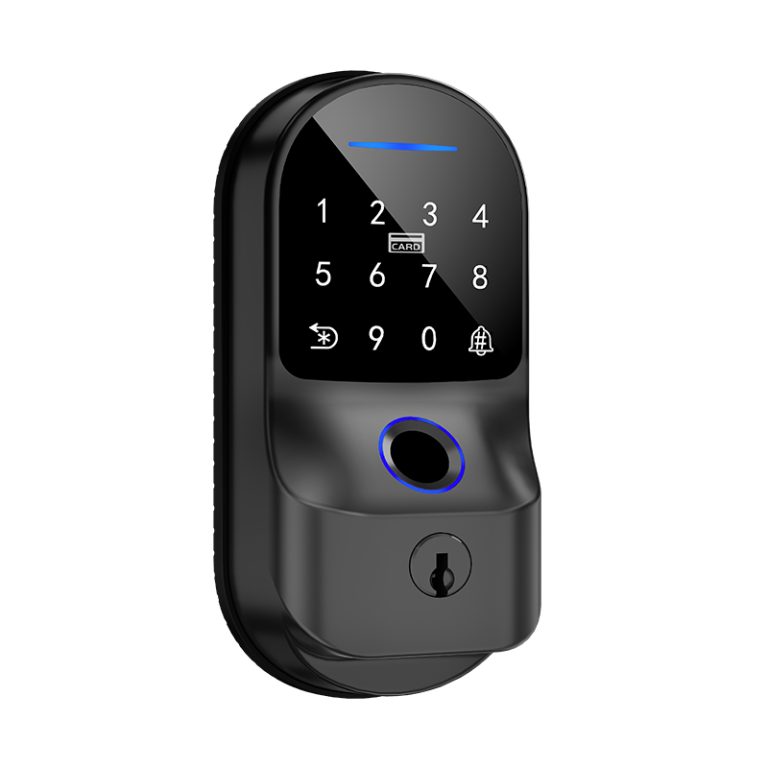

Curved-Edge American-Style Smart Deadbolt
A refined version of our American-style smart deadbolt, featuring a curved-edge design instead of the traditional square-shaped frame.
It retains the practical smart access functions of the standard version, including fingerprint, password, RFID card, mechanical key, and optional Tuya Bluetooth or Tuya WiFi App.
The rounded design gives the lock a softer and more modern appearance, making it suitable for wooden doors, American-style room doors, apartments, and residential projects.
Why Choose This Lock?
Curved & Modern Design
The four sides feature a smooth curved-edge design, creating a more refined appearance compared with the traditional square-frame version.
Stable & Reliable Quality
Designed for everyday use with stable performance and reliable operation for residential and project applications.
Cost-Effective Smart Solution
Combines practical smart access functions with competitive pricing, making it suitable for project orders, distributors, wholesalers, and residential applications.
Flexible Project Configuration
Supports multiple unlocking methods and optional Tuya Bluetooth or Tuya WiFi App versions. Additional functions can also be added according to project requirements.
Key Features
- Fingerprint Unlock
- Password Unlock
- RFID Card Unlock
- Mechanical Key
- Tuya Bluetooth App
- Tuya WiFi App
- Multi-Language Voice Prompts
- Doorbell Function
- Automatic Door Direction Recognition
- Curved-Edge Exterior Design
Optional Upgrade Features
For projects requiring additional smart functions, the lock can be upgraded with:
- Smart Door Viewer / Cat-Eye
- Palm Vein Recognition
- Other Customized Configurations
Suitable Applications
- Wooden Doors
- American-Style Room Doors
- Bedrooms
- Apartments
- Rental Properties
- Residential Projects
- Smart Home Projects
- Door Replacement Projects
Product Specifications
| Specification | Details |
|---|---|
| Product Type | American-Style Smart Deadbolt |
| Available Versions | Smart Cat-Eye / Fingerprint / Push-Button Smart Cat-Eye / Button-Style Fingerprint |
| Material | Aluminum Alloy |
| Available Colors | Black / Silver / Gold |
| Unlocking Methods | Fingerprint / Password / RFID Card / Mechanical Key / App |
| App Options | Tuya WiFi App / Tuya Bluetooth App |
| Fingerprint Capacity | 100 Fingerprints |
| Voice Prompts | 8 Languages |
| Doorbell Function | Built-in |
| Cat-Eye Function | Available on Cat-Eye Versions |
| Palm Vein Recognition | Optional Upgrade |
| Automatic Door Direction Recognition | Supported |
| Bluetooth | Optional |
| WiFi | Optional |
| Applicable Door Thickness | 30–50 mm |
| Panel Dimensions | 143 × 65 × 34 mm / 158 × 70 × 31 mm |
| Power Supply | 4 × AA Alkaline Batteries |
